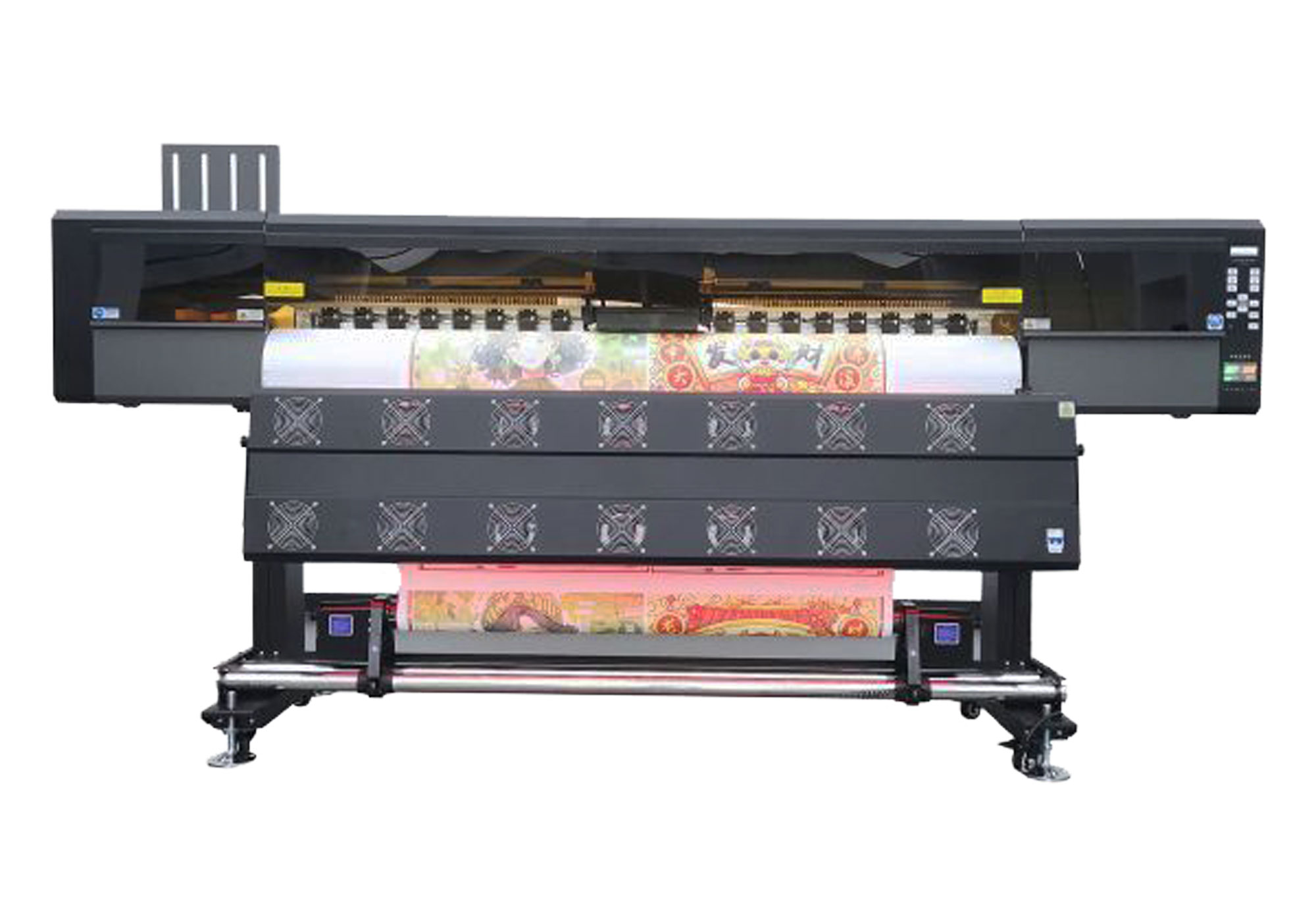

เครื่องพิมพ์ 180cm i3200 eco Solvent แบบ 4 หัวพิมพ์ ป้ายโฆษณา สติ๊กเกอร์ PVC PP ไวนิล เฟล็ก ฉลากสินค้า กันน้ำ กันแสง

ราคาขาย 369000 ฿

คำอธิบาย

เครื่องพิมพ์สติ๊กเกอร์,เครื่องพิมพ์ป้าย,เครื่องพิมพ์ฉลากสินค้า

Specification:

Printhead		4pcs i3200E
Maximum print		1800mm
Print resolution speed		Produce: 84m²/h
		Resolution: 53m²/h
		High Resolution: 42m²/h
Ink	Sort	Waterbase ink, Sublimation ink
	Capacity	Empty ink supply system
Media	Width	1850mm
	Thickness	1.5 to 1.8mm adjustable
	Weight	75kg
	Sort	PP Syghentic Paper, Backit, PhotographicPaper, Sublimation paper, Banrer, Leather and so on
High printing quality		VSD technology
Interface		1000Mbiu/s
Voltage		AC220V, 50HZ
Operating environment		Temperature: 15°C-30°C. Humidity: 35%RH-65%RH
Power		4000w
Dimensions of printer		31007001450mm
Dimensions of packing		2700570650mm
Net weight		240KG
Gross weight		300KG

Boards&RIP	Boards	Hoson Boards
	Password	Build In Boards & Showing In Software
	Rip Software	Maintop Rip Software
Body	Main Girder Structure	2001005mm Square Tube
	Y-Axis	20mm Diameter
	Beam	Aluminium Beam
	Linear Guide Way	THK Linear Guide Way With Two Block
	Pinch Roller	High Precision 3 Level Pinch Roller
	Printing Bed	178mm Wide Printing Bed
	Suction System	Adjustable Vacuum Suction System
	LED lighting	Printing Bed Lighting System
Carriage	Belt	Italy MEGADYNE Belt
	Chain	Germany Igus Drag Chain
	Cable	Fiber
	Power Cable	Germany Igus Power Cable
	Encoder	180DPI(9730)
	Carraige Lifting	Manual Screw Type Carraige Lifting System
	Capping	Automatic Capping &Wipping System
	Anti Collision	Anti Collision System
Motor	X Motor	Leadshine 400w DC Servo Motor
	Y Motor	Leadshine 180w DC Servo Motor
	XY Motor Bracket	Metal Brackets
F&T	Paper Sensor	Paper Out Waming Sensor
	Feeding And Take Up	Double Industry Motor
	Leveling Stand	Leveling Stand
Ink Supply	Ink Supply System	Bulk Ink Supply System
	Main Ink Tank	1.5L Main Ink Tank
	Damper	Negative Type Damper
	Ink Pump	SPD Ink Pump
Heating&Drying	Dryging System	3000W IR Heater
	Heating Control Panel	3 in 1 Heating Control Panel
	Heating System	Rear-Printing Bed-Front 3 Heaters
	Carriage Plate Heater	24V DC Heater
