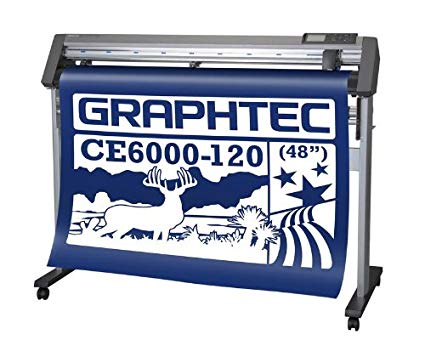

เครื่องตัดสติ๊กเกอร์ GRAPHTEC CE6000-120

สั่งพิมพ์
เครื่องตัดสติ๊กเกอร์ GRAPHTEC CE6000-120
ราคาขาย 145000 ฿
คำอธิบาย

Specifications

Item CE6000-40 CE6000-60 CE6000-120 CE6000-120-AMO
CPU 32-bit CPU
Configuration Grit rolling type, digital servo drive
Max. cutting area
(Guaranteed cutting area)
375 mm x 50 m *1
(356 mm x 2 m *1)
603 mm x 50 m *1
(584 mm x 5 m *1)
1213 mm x 50 m *1
(1194 mm x 5 m *1)
Mark scanning margin Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm
Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller 2 rollers 2 rollers 4 rollers 4 rollers
Max. cutting speed 600 mm/s (All directions) 900 mm/s (at 45º direction) 1000 mm/s (at 45º direction)
Max. acceleration 21.2 m/s2 (at 45º direction) 13.9 m/s2 (at 45º direction)
Max. cutting force
(Instantaneous max. force)
2.94 N (300 gf) in 31 steps
(3.2 N (330 gf))
4.41 N (450 gf) in 38 steps
(4.9 N (500 gf))
4.41 N (450 gf) in 38 steps
(4.9 N (500 gf))
Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and type of media)
Repeatability Max. 0.1 mm in plot up to 2 m *1
Mountable number of tools 1 tool
Blade type Supersteel
Pen type Oil-based ballpoint, Water-based fiber-tip pen
Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness
Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cutting Yes (performed by force control)
Interface RS-232C / USB2.0 (High Speed)
